mtgsig2.1 版本之 a5 算法分析
本文由 简悦 SimpRead 转码， 原文地址 mp.weixin.qq.com
新年快乐~
搞过 mtgsig 的应该都知道，a0 代表算法版本，a1 可以理解为 mt 系每个 app 的标识码，此文章所用 app 和版本是 dp10.52.15
简单说一下怎么定位 a5 的加密入口以及算法还原
首先这里用的指令执行模拟框架还是 unidbg
补环境不再说了，直接放出完整调用代码
package com.xxx;
import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Emulator;
import com.github.unidbg.Module;
import com.github.unidbg.debugger.Debugger;
import com.github.unidbg.file.FileResult;
import com.github.unidbg.file.IOResolver;
import com.github.unidbg.hook.hookzz.*;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.*;
import com.github.unidbg.linux.android.dvm.api.ApplicationInfo;
import com.github.unidbg.linux.android.dvm.array.ArrayObject;
import com.github.unidbg.linux.android.dvm.array.ByteArray;
import com.github.unidbg.linux.android.dvm.wrapper.DvmInteger;
import com.github.unidbg.linux.android.dvm.wrapper.DvmLong;
import com.github.unidbg.linux.file.SimpleFileIO;
import com.github.unidbg.memory.Memory;
import com.github.unidbg.utils.Inspector;
import com.sun.jna.Pointer;
import java.io.File;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.List;
import java.util.UUID;
public class Mtgsig extends AbstractJni implements IOResolver {
private final AndroidEmulator emulator;
private final VM vm;
private final Module module;
private static final String APP_PACKAGE_NAME = "com.xxx.v1";
Mtgsig() {
emulator = AndroidEmulatorBuilder.for32Bit().setProcessName(APP_PACKAGE_NAME).build(); // 创建模拟器实例，要模拟32位或者64位，在这里区分
final Memory memory = emulator.getMemory(); // 模拟器的内存操作接口
memory.setLibraryResolver(new AndroidResolver(23)); // 设置系统类库解析
vm = emulator.createDalvikVM(new File("unidbg-android\\src\\test\\java\\com\\xxx\\xxx\xxx.apk")); // 创建Android虚拟机
vm.setVerbose(true); // 设置是否打印Jni调用细节
vm.setJni(this);
DalvikModule dm = vm.loadLibrary(new File("unidbg-android\\src\\test\\java\\com\\xxx\\xxx\\xxx.so"), true);
emulator.getSyscallHandler().addIOResolver(this);
module = dm.getModule();
dm.callJNI_OnLoad(emulator);
}
public static void main(String[] args) {
Mtgsig test = new Mtgsig();
test.HookByConsoleDebugger();
test.hookrc4();
test.hookrc4_key();
test.hookbase64();
test.hookbase64_ret();
test.callInit();
test.callMain();
}
public void callInit(){
List<Object> list = new ArrayList<>(10);
list.add(vm.getJNIEnv()); // 第一个参数是env
list.add(0); // 第二个参数，实例方法是jobject，静态方法是jclazz，直接填0，一般用不到。
list.add(1);
ArrayObject myobject = new ArrayObject(null);
vm.addLocalObject(myobject);
// 完整的参数2
list.add(vm.addLocalObject(myobject));
module.callFunction(emulator, 0x4305, list.toArray());
};
public void callMain(){
List<Object> list = new ArrayList<>(10);
list.add(vm.getJNIEnv()); // 第一个参数是env
list.add(0); // 第二个参数，实例方法是jobject，静态方法是jclazz，直接填0，一般用不到。
list.add(2);
StringObject input2_1 = new StringObject(vm, "4069cb78-e02b-45f6-9f0a-b34ddccf389c");
String input="GET /localpush.bin cityid=4";
ByteArray input2_2 = new ByteArray(vm, input.getBytes(StandardCharsets.UTF_8));
DvmInteger input2_3 = DvmInteger.valueOf(vm, 2);
vm.addLocalObject(input2_1);
vm.addLocalObject(input2_2);
vm.addLocalObject(input2_3);
// 完整的参数2
list.add(vm.addLocalObject(new ArrayObject(input2_1, input2_2, input2_3)));
Number number = module.callFunction(emulator, 0x4305, list.toArray())[0];
StringObject result = (StringObject) ((DvmObject[])((ArrayObject)vm.getObject(number.intValue())).getValue())[0];
System.out.println(result.getValue());
};

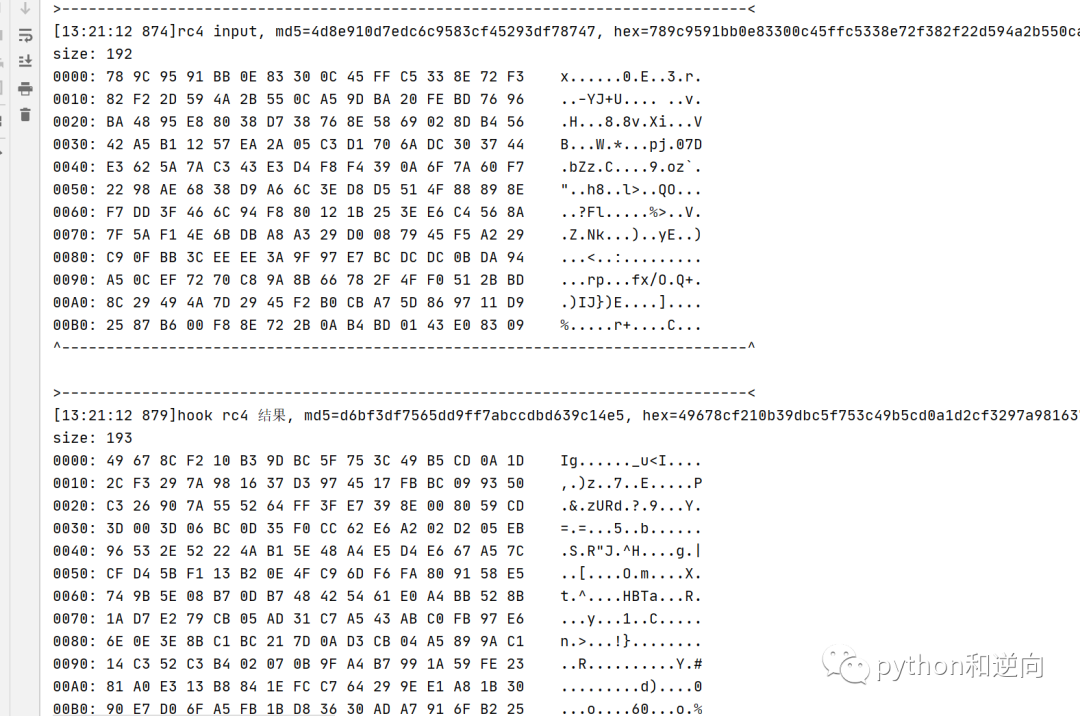

public void hookrc4(){
IHookZz hookZz = HookZz.getInstance(emulator); // 加载HookZz
hookZz.wrap(module.base + 0x88F80 + 1, new WrapCallback<HookZzArm32RegisterContext>() {
@Override
// 方法执行前
public void preCall(Emulator<?> emulator, HookZzArm32RegisterContext ctx, HookEntryInfo info) {
int length = ctx.getIntArg(3);
Pointer out = ctx.getPointerArg(2);
ctx.push(out);
Inspector.inspect(ctx.getPointerArg(1).getByteArray(0, length),"rc4 input");
};
@Override
// 方法执行后
public void postCall(Emulator<?> emulator, HookZzArm32RegisterContext ctx, HookEntryInfo info) {
Pointer output = ctx.pop();
byte[] outputhex = output.getByteArray(0, 193);
Inspector.inspect(outputhex, "hook rc4 结果");
}
});
hookZz.disable_arm_arm64_b_branch();
}

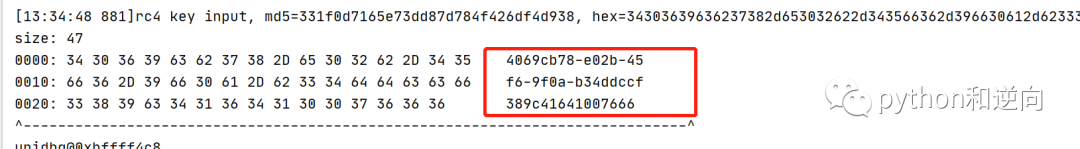

public void hookrc4_key(){
IHookZz hookZz = HookZz.getInstance(emulator); // 加载HookZz

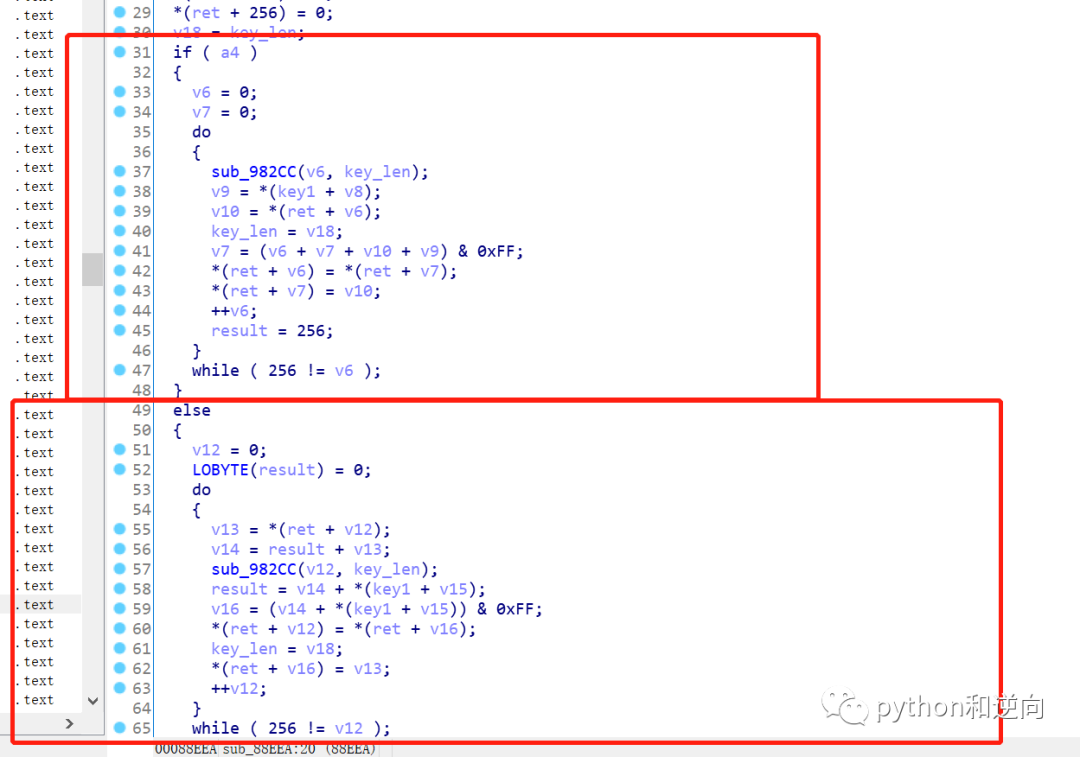

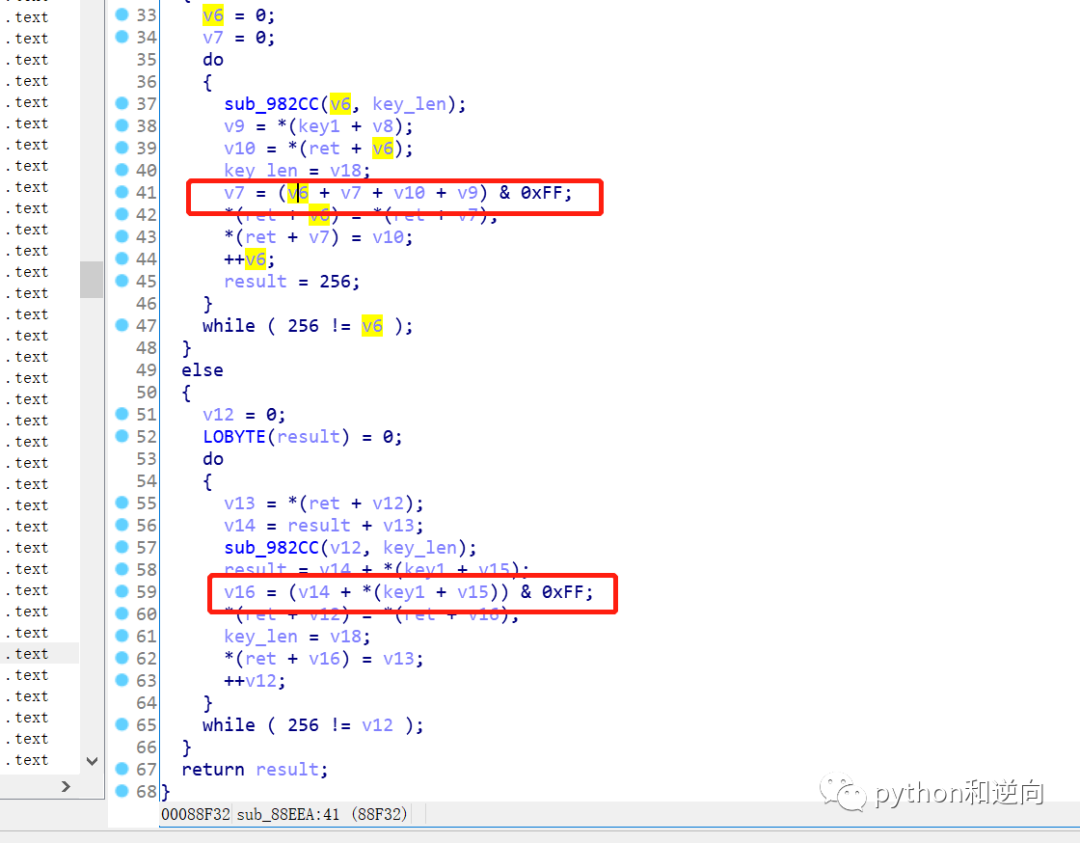

hookZz.wrap(module.base + 0x88EEA + 1, new WrapCallback<HookZzArm32RegisterContext>() {
@Override
// 方法执行前
public void preCall(Emulator<?> emulator, HookZzArm32RegisterContext ctx, HookEntryInfo info) {
int length = ctx.getIntArg(2);
Pointer arg1 = ctx.getPointerArg(1);
// ctx.push(ctx.getR2Pointer());
Pointer out1 = ctx.getPointerArg(0);
ctx.push(out1);
Inspector.inspect(arg1.getByteArray(0, length),"rc4 key input");
};
@Override
// 方法执行后
public void postCall(Emulator<?> emulator, HookZzArm32RegisterContext ctx, HookEntryInfo info) {
Pointer output = ctx.pop();
System.out.println(output);
byte[] outputhex = output.getByteArray(0, 256);
Inspector.inspect(outputhex, "hook rc4 key 结果");
}
});
hookZz.disable_arm_arm64_b_branch();
}

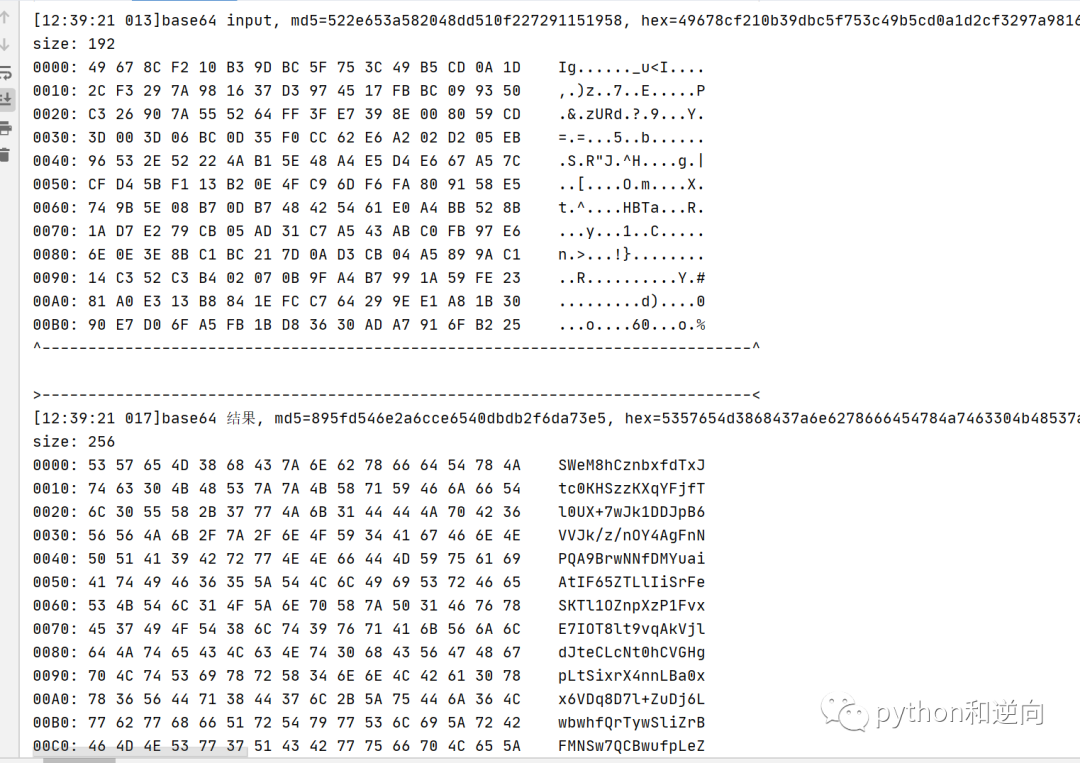

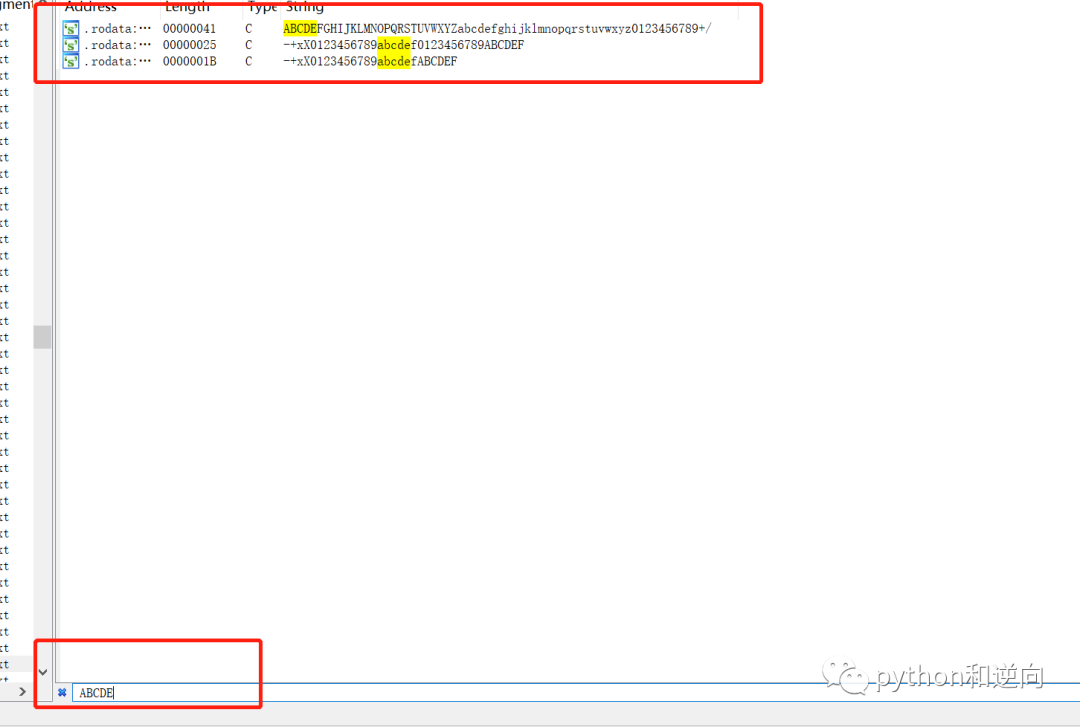

public void hookbase64(){
IHookZz hookZz = HookZz.getInstance(emulator); // 加载HookZz
hookZz.wrap(module.base + 0xB468 + 1, new WrapCallback<HookZzArm32RegisterContext>() {
@Override
// 方法执行前
public void preCall(Emulator<?> emulator, HookZzArm32RegisterContext ctx, HookEntryInfo info) {
int length = ctx.getIntArg(2);
Pointer out = ctx.getPointerArg(0);
ctx.push(out);
Inspector.inspect(ctx.getPointerArg(1).getByteArray(0, length),"base64 input");
};
@Override
// 方法执行后
public void postCall(Emulator<?> emulator, HookZzArm32RegisterContext ctx, HookEntryInfo info) {
}
});
hookZz.disable_arm_arm64_b_branch();
}
public void hookbase64_ret(){
IHookZz hookZz = HookZz.getInstance(emulator); // 加载HookZz
hookZz.wrap(module.base + 0x8C8E0 + 1, new WrapCallback<HookZzArm32RegisterContext>() {
@Override
// 方法执行前
public void preCall(Emulator<?> emulator, HookZzArm32RegisterContext ctx, HookEntryInfo info) {
int length = ctx.getIntArg(2);
Pointer out = ctx.getPointerArg(1);
ctx.push(out);
Inspector.inspect(ctx.getPointerArg(1).getByteArray(0, length),"base64 结果");
};
@Override
// 方法执行后
public void postCall(Emulator<?> emulator, HookZzArm32RegisterContext ctx, HookEntryInfo info) {
}
});
hookZz.disable_arm_arm64_b_branch();
}
public void HookByConsoleDebugger(){
Debugger debugger = emulator.attach();

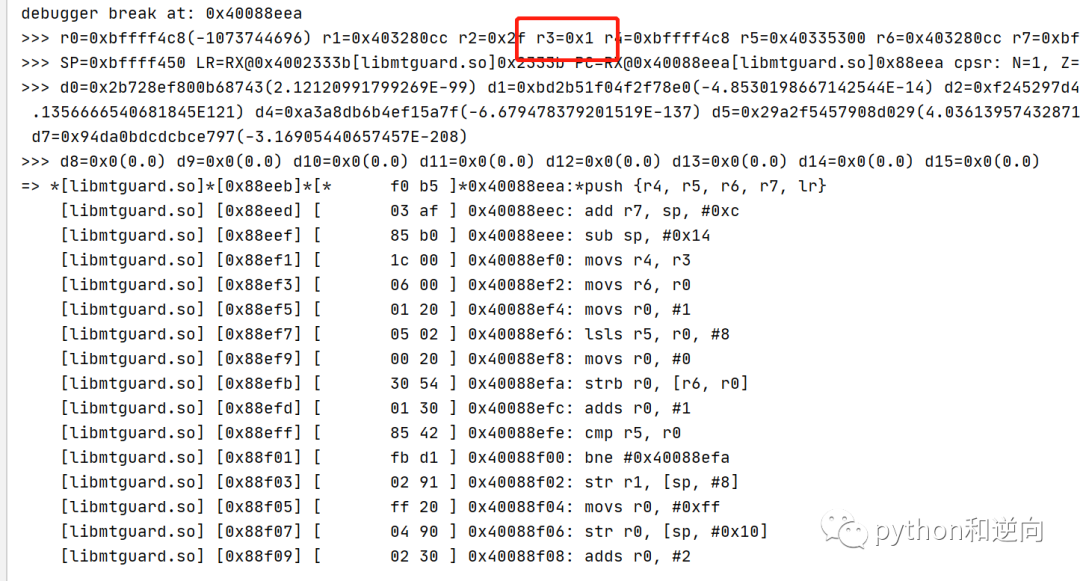

debugger.addBreakPoint(module.base+0x88EEA+1);//rc4 key
debugger.addBreakPoint(module.base+0x88F80+1);//rc4
// debugger.addBreakPoint(module.base+0xB468);//base64

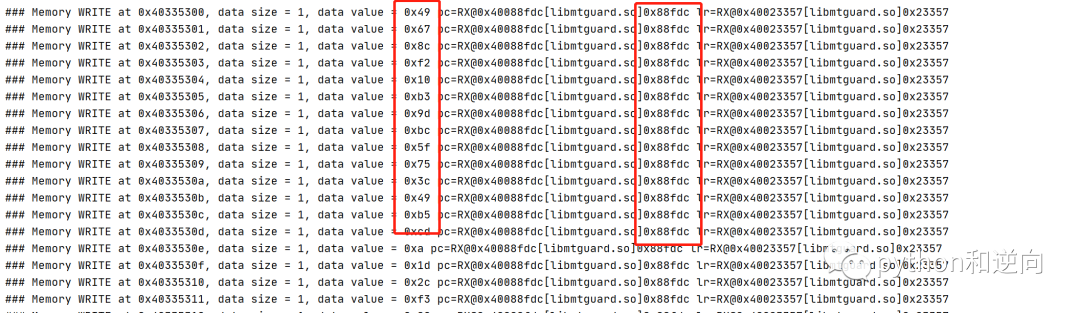

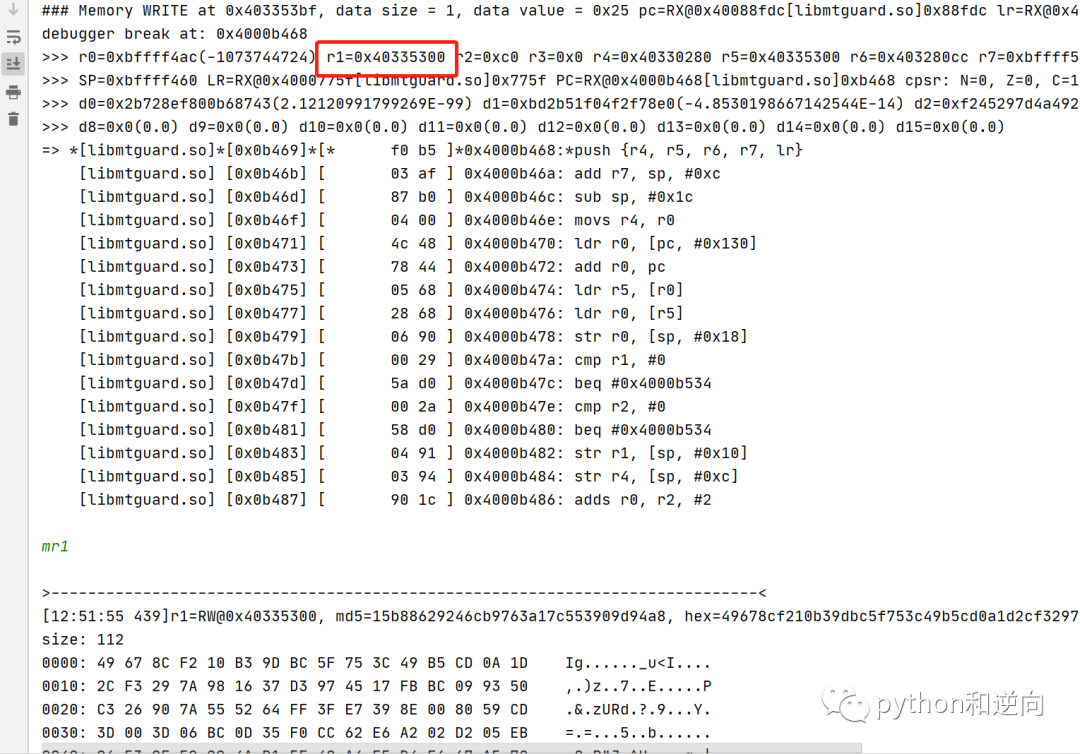

//trace a5 baseb4的地址
//emulator.traceWrite(0x40335300L,0x40335300L+0xc0L);
}
@Override
public DvmObject<?> callStaticObjectMethodV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
switch (signature){
case "com/meituan/android/common/mtguard/NBridge->getClassLoader()Ljava/lang/ClassLoader;":{
return vm.resolveClass("java/lang/ClassLoader").newObject(signature);
}
case "java/lang/ClassLoader->main2(I[Ljava/lang/Object;)Ljava/lang/Object;":{
int num = vaList.getIntArg(0);
System.out.println("fuck Num:"+num);
switch (num){
case 1:{
return new StringObject(vm, "com.dianping.v1");
}
case 4:{
return new StringObject(vm, "ms_com.dianping.v1.png");
}
case 5:{
return new StringObject(vm, "ppd_com.dianping.v1.xbt");
}
case 2:{
DvmObject<?> context = vm.resolveClass("android/content/Context").newObject(null);// context
return context;
}
case 6:{
return new StringObject(vm, "5.4.11");
}
case 51:{
return new StringObject(vm, "2");
}
case 3:{
DvmObject<?> context = vm.resolveClass("android/content/Context").newObject(null);// context
return context;
}
case 8:{
return new StringObject(vm, "");
}
case 40:{
return new StringObject(vm, "");
}
}
break;
}
case "java/lang/ClassLoader->main1(I[Ljava/lang/Object;)Ljava/lang/Object;":{
int num = vaList.getIntArg(0);
System.out.println("fuck Num:"+num);
switch (num){
case 49:{
return new StringObject(vm, "5.1.12");
}
}
break;
}
case "java/lang/System->getProperty(Ljava/lang/String;)Ljava/lang/String;":{
String propertyKey = vm.getObject(vaList.getObjectArg(0).hashCode()).getValue().toString();
System.out.println(propertyKey);
switch (propertyKey){
case "http.proxyHost":{
return new StringObject(vm, "");
}
case "https.proxyHost":{
return new StringObject(vm, "");
}
}
break;
}
case "android/os/SystemProperties->get(Ljava/lang/String;)Ljava/lang/String;":{
String propertyKey = vm.getObject(vaList.getObjectArg(0).hashCode()).getValue().toString();
System.out.println(propertyKey);
switch (propertyKey){
case "ro.build.id":{
return new StringObject(vm, "OPR6.170623.010");
}
case "persist.sys.usb.config":{
return new StringObject(vm, "diag,serial_cdev,rmnet,adb");
}
case "sys.usb.config":{
return new StringObject(vm, "ptp,adb");
}
case "sys.usb.state":{
return new StringObject(vm, "ptp,adb");
}
}
break;
}
case "java/util/UUID->randomUUID()Ljava/util/UUID;":{
return vm.resolveClass("java/util/UUID").newObject(UUID.randomUUID());
}
case "java/lang/Long->valueOf(J)Ljava/lang/Long;":{
return DvmLong.valueOf(vm, vaList.getLongArg(0));
}
case "java/lang/String->format(Ljava/lang/String;[Ljava/lang/Object;)Ljava/lang/String;":{
return new StringObject(vm, String.format(vaList.getObjectArg(0).getValue().toString(), vaList.getIntArg(1)));
}
}
return super.callStaticObjectMethodV(vm, dvmClass, signature, vaList);
}
@Override
public DvmObject<?> callObjectMethodV(BaseVM vm, DvmObject<?> dvmObject, String signature, VaList vaList) {
switch (signature){
case "java/lang/ClassLoader->loadClass(Ljava/lang/String;)Ljava/lang/Class;":{
return dvmObject.getObjectType();
}
case "android/content/pm/PackageManager->getApplicationInfo(Ljava/lang/String;I)Landroid/content/pm/ApplicationInfo;":{
return new ApplicationInfo(vm);
}
case "java/util/UUID->toString()Ljava/lang/String;":{
return new StringObject(vm, dvmObject.getValue().toString());
}
}
return super.callObjectMethodV(vm, dvmObject, signature, vaList);
}
@Override
public DvmObject<?> newObjectV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
switch (signature){
case "java/io/File-><init>(Ljava/lang/String;)V":{
return vm.resolveClass("java/io/File").newObject(new File(vaList.getObjectArg(0).toString()));
}
case "java/lang/Integer-><init>(I)V":
int input = vaList.getIntArg(0);
return DvmInteger.valueOf(vm, input);
}
return super.newObjectV(vm, dvmClass, signature, vaList);
}
@Override
public boolean callBooleanMethodV(BaseVM vm, DvmObject<?> dvmObject, String signature, VaList vaList) {
switch (signature){
case "java/io/File->canRead()Z":{
return false;
}
}
return super.callBooleanMethodV(vm, dvmObject, signature, vaList);
}
@Override
public DvmObject<?> getObjectField(BaseVM vm, DvmObject<?> dvmObject, String signature) {
switch (signature){
case "android/content/pm/ApplicationInfo->sourceDir:Ljava/lang/String;":{
return new StringObject(vm, "/data/app/com.dianping.v1-BVuX2sFQfuNmRz85qE2NuA==/base.apk");
}
}
return super.getObjectField(vm, dvmObject, signature);
}
@Override
public int getStaticIntField(BaseVM vm, DvmClass dvmClass, String signature) {
switch (signature){
case "android/content/pm/PackageManager->GET_SIGNATURES:I":{
return 64;
}
}
return super.getStaticIntField(vm, dvmClass, signature);
}
@Override
public int getIntField(BaseVM vm, DvmObject<?> dvmObject, String signature) {
switch (signature){
case "android/content/pm/PackageInfo->versionCode:I":{
return 1100110203;
}
}
return super.getIntField(vm, dvmObject, signature);
}
@Override
public DvmObject<?> getStaticObjectField(BaseVM vm, DvmClass dvmClass, String signature) {
switch (signature){
case "android/os/Build->BRAND:Ljava/lang/String;":{
return new StringObject(vm, "OPPO");//品牌
}
case "android/os/Build->TYPE:Ljava/lang/String;":{
return new StringObject(vm, "user");
}
case "android/os/Build->HARDWARE:Ljava/lang/String;":{
return new StringObject(vm, "OPM1.171019.011");//硬件
}
case "android/os/Build->MODEL:Ljava/lang/String;":{
return new StringObject(vm, "OPPO R11st");//型号
}
case "android/os/Build->TAGS:Ljava/lang/String;":{
return new StringObject(vm, "release-keys");
}
case "android/os/Build$VERSION->RELEASE:Ljava/lang/String;":{
return new StringObject(vm, "9");
}
}
return super.getStaticObjectField(vm, dvmClass, signature);
}
@Override
public long callStaticLongMethodV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
switch (signature){
case "java/lang/System->currentTimeMillis()J":{
return System.currentTimeMillis();
}
}
return super.callStaticLongMethodV(vm, dvmClass, signature, vaList);
}
@Override
public FileResult resolve(Emulator emulator, String pathname, int oflags) {
这里成包名
if (("/data/app/com.xxx.v1-BVuX2sFQfuNmRz85qE2NuA==/base.apk").equals(pathname)) {
return FileResult.success(new SimpleFileIO(oflags, new File("unidbg-android\\src\\test\\java\\com\\xxx\\xxx\\base.apk"), pathname));
}
return null;
}
}
mtgsig = {
"a0":"2.1",
"a1":"4069cb78-e02b-45f6-9f0a-b34ddccf389c",
"a3":4,
"a4":1641007666,
"a5":"SWeM8hCznbxfdTxJtc0KHSzzKXqYFjfTl0UX+7wJk1DDJpB6VVJk/z/nOY4AgFnNPQA9BrwNNfDMYuaiAtIF65ZTLlIiSrFeSKTl1OZnpXzP1FvxE7IOT8lt9vqAkVjldJteCLcNt0hCVGHgpLtSixrX4nnLBa0xx6VDq8D7l+ZuDj6LwbwhfQrTywSliZrBFMNSw7QCBwufpLeZGln+I4Gg4xO4hB78x2QpnuGoGzCQ59Bvpfsb2DYwraeRb7Il",
"a6":0,
"a7":"5R12uldnp3hSXPr7QbCyuHdMCrky7li1vGm/mSt+YyAm7r5b5MqI/SlCC8BSeXZq7tAbvMxK3aXI7ZxNMosia7BaRbVILxHDVxFHrN2tRTI=",
"a8":"DAD724885614A2FEFE4680911D321F89911FC9D29FA7F306DC6AEE1F",
"a9":"90aa5e3cGg12eitjwSfAQq77re9bzPGk5gYYnXaseK0nggfQbPVktUMdgequOmVsVNUpcP1b0ceoAHDyorGl5cekKABAErse+EP0QwwIVhofmRHst0S59pj/B5h8htH+zosxunRrK0hNZJmvoh1xRBkKHq6jquk3GIKtPf7RXCXwXxN0yS3qqcdFZO2Wep4V8va5C/TkjB0YC6u4mJz/brXx3F/KYX3Z9PaGtyRGZpaRpgKBLxVUKJWA8dwT9MgNB466bfm3XrFyYnHw0sbrgDFaMM5rile4hvzHef+08TjJ3ycIOJT0kFLZOC4c3QVftWm31epg",
"a10":"{}",
"x0":1,
"a2":"52516f82cfdd639bc05dbed46add0c59"
}
上面是 undbg 调用出来的 mtgsig，会发现每次调用 a2, a4, a5, a7 都会不一样, 这样很难分析，所以我们第一件事先修改 undbg 中的时间获取函数，让函数返回固定值，看看有什么效果（并不是所有案例都可以）此图放错应修改 gettimeofday，可以在 src/main/java/com/github/unidbg/unix/UnixSyscallHandler.java 中修改
这样修改后每次调用 a2, a4, a5, a7 都是固定的
然后我们看 a5 这种密文，一看就是 base64 输出方式，那就 hook 住 base64 的函数验证下
**怎么找 base64 编码函数？
**

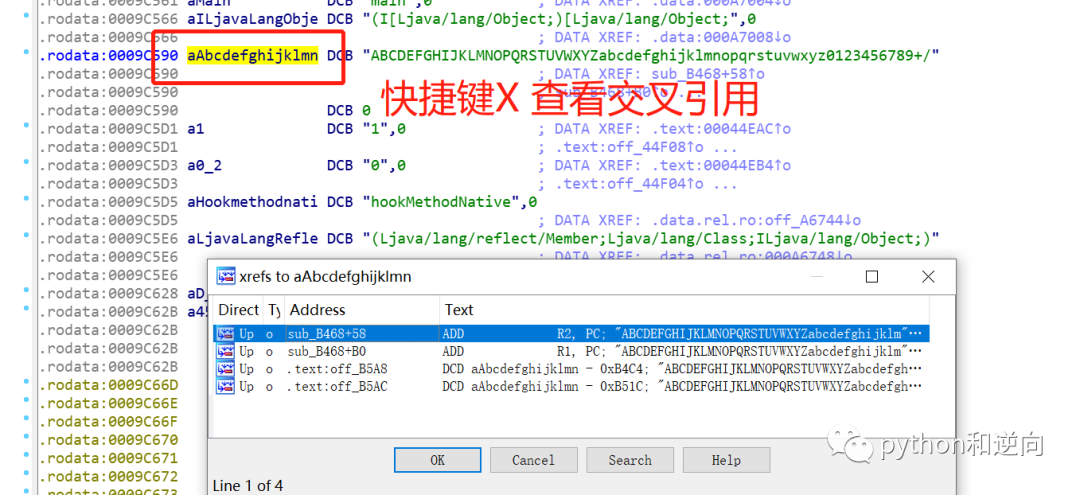

老方法：ida 打开 shift + f12 搜索 ABCDE
双击第一个结果
快捷键 x 查看交叉引用
双击第一个结果
f5
int __fastcall sub_B468(int a1, int a2, signed int a3)
{
int v3; // r4
int v4; // r0
_BYTE *v5; // r6
int v6; // r5
int v7; // r2
int v8; // r0
int v9; // r4
int v10; // r2
char v11; // r1
int v12; // r1
int v13; // r0
_DWORD *v14; // r0
int v16; // [sp+4h] [bp-24h]
signed int v17; // [sp+8h] [bp-20h]
int v18; // [sp+Ch] [bp-1Ch]
int v19; // [sp+10h] [bp-18h]
char v20; // [sp+14h] [bp-14h]
int v21; // [sp+18h] [bp-10h]
v3 = a1;
if ( !a2 || !a3 )
{
v12 = sub_370C(_stack_chk_guard) + 132;
v13 = v3;
LABEL_13:
sub_8C608(v13, v12);
return _stack_chk_guard - v21;
}
v19 = a2;
v18 = a1;
v17 = a3;
v4 = sub_98230(a3 + 2, 3u);
v5 = malloc((4 * v4 | 1) + 1);
if ( !v5 )
{
v12 = sub_370C(0) + 132;
v13 = v3;
goto LABEL_13;
}
v6 = 0;
sub_2A514();
v7 = v17;
v16 = v5;
v8 = v19;
if ( v17 >= 3 )
{
v6 = 0;
do
{
*v5 = aAbcdefghijklmn[*(v8 + v6) >> 2];
v5[1] = aAbcdefghijklmn[(*(v8 + v6 + 1) >> 4) | 16 * *(v8 + v6) & 0x30];
v5[2] = aAbcdefghijklmn[(*(v8 + v6 + 2) >> 6) | 4 * *(v8 + v6 + 1) & 0x3C];
v5[3] = aAbcdefghijklmn[*(v8 + v6 + 2) & 0x3F];
v8 = v19;
v5 += 4;
v6 += 3;
}
while ( v6 < v17 - 2 );
v7 = v17;
}
if ( v6 >= v7 )
{
v14 = v3;
}
else
{
v9 = v7;
*v5 = aAbcdefghijklmn[*(v8 + v6) >> 2];
v10 = 16 * *(v8 + v6) & 0x30;
if ( v6 == v9 - 1 )
{
v5[1] = aAbcdefghijklmn[v10];
v11 = 61;
}
else
{
v5[1] = aAbcdefghijklmn[(*(v8 + v6 + 1) >> 4) | v10];
v11 = aAbcdefghijklmn[4 * *(v8 + v6 + 1) & 0x3C];
}
v14 = v18;
v5[3] = 61;
v5[2] = v11;
v5 += 4;
}
*v5 = 0;
sub_8C8E0(v14, v16, &v5[~v16 + 1], &v20);
free(v16);
return _stack_chk_guard - v21;
}
这函数里有 base64 编码流程，看上去没魔改，编码的结果是放在 v5，v5=v16,v16 传给 sub_bc8e0, 但还是要验证下 base64 魔改没，a5 走不走这个函数也要验证
所以 hook 一把梭
hook sub_B468 和 sub_8C8E0
public static void main(String[] args) {
Mtgsig test = new Mtgsig();
test.hookbase64();
test.hookbase64_ret();
test.callInit();
test.callMain();
}
结果在运行日志里找到了 a5 的密文
可以看到 base64 的入参是乱码，所以肯定是某种算法加密后的字节流，
把这个入参经过标准 base64 编码之后发现和 unidbg 算出来的结果一致，说明没有魔改
所以下一步我们要顺藤摸瓜，找到这个某算法
定位某算法
方法很多，我用 trace，因为 unidbg 的地址随机化是关闭的，也就是说，你模拟执行一千次，加密结果存放的内存地址是不会变的，所以可以监控某个地址块的读写操作，从而找到操作地址的地方
console debugger 在 0xB468 处打个断点
public void HookByConsoleDebugger(){
Debugger debugger = emulator.attach();
debugger.addBreakPoint(module.base+0xB468);
}
可以看到 r1 寄存器存放的是某算法加密后的字节流，r2 是长度，那么我们 trace 这个地址的写入，看是哪个地址操作了这个地址
public void HookByConsoleDebugger(){
Debugger debugger = emulator.attach();
debugger.addBreakPoint(module.base+0xB468);
//trace a5 baseb4 输入的地址
emulator.traceWrite(0x40335300L,0x40335300L+0xc0L);
}
注意地址是 long 类型，不加 L 是 trace 不了的
然后运行
有结果了，后边的地址就是我们要的东西
ida g 跳到 0x88fdc

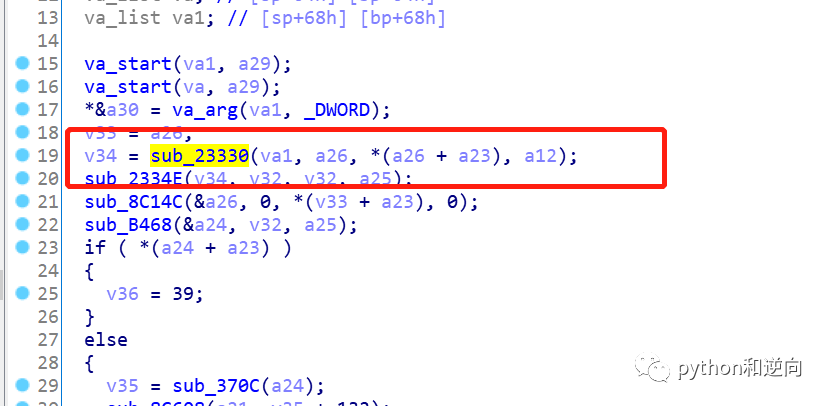

int __fastcall sub_88F80(int result, _BYTE *a2, _BYTE *a3, signed int a4)
{
int v4; // r4
int v5; // r5
char v6; // ST0C_1
_BYTE *v7; // [sp+0h] [bp-28h]
_BYTE *v8; // [sp+4h] [bp-24h]
if ( a4 >= 1 )
{
v8 = (result + 257);
v7 = (result + 256);
do
{
LOBYTE(v4) = *v7 + 1;
*v7 = v4;
v4 = v4;
LOBYTE(v5) = *v8 + *(result + v4);
*v8 = v5;
v6 = *(result + v4);
v5 = v5;
*(result + v4) = *(result + v5);
*(result + v5) = v6;
*a3 = *a2 ^ *(result + ((*(result + *v8) + *(result + *v7)) & 0xFF));
--a4;
++a3;
++a2;
}
while ( a4 );
}
return result;
}
特征很明显，有经验的一看就知道是 rc4（boss 直聘那篇也是这个
hook
public static void main(String[] args) {
Mtgsig test = new Mtgsig();
test.HookByConsoleDebugger();
test.hookrc4();
test.callInit();
test.callMain();
}
结果
入参开头是 789c， 是 zlib 压缩算法特征
import zlib
print(zlib.decompress(bytes.fromhex("789c9591bb0e83300c45ffc5338e72f382f22d594a2b550ca59dba20febd7696ba4895e88038d738768e5869028db45642a5b11257ea2a05c3d1706adc303744e3625a7ac343e3d4f8f4390a6f7a60f72298ae6838d9a66c3ed8d5514f88898ef7dd3f466c94f880121b253ee6c4568a7f5af14e6bdba8a329d0087945f5a229c90fbb3ceeee3a9f97e7bcdcdc0bda94a50cef7270c89a8b66782f4ff0512bbd8c29494a7d2945f2b0cba75d869711d92587b600f88e722b0ab4bd0143e08309")).decode())
现在明文知道了 还要知道 rc4 的 key，key 一般在另一个函数里，通过 key 生成 S 盒
sub_88F80 按 x 交叉引用 可以到这里
int __fastcall sub_88EEA(int a1, int key, int key_len, int a4)
{
int ret; // r6
int v5; // r0
int v6; // r5
int v7; // r4
int v8; // r1
int v9; // r0
int v10; // r1
int result; // r0
int v12; // r4
int v13; // r5
int v14; // ST00_4
int v15; // r1
int v16; // r1
int key1; // [sp+8h] [bp-18h]
int v18; // [sp+Ch] [bp-14h]
ret = a1;
v5 = 0;
do
{
*(ret + v5) = v5;
++v5;
}
while ( 256 != v5 );
key1 = key;
*(ret + 257) = 0;
*(ret + 256) = 0;
v18 = key_len;
if ( a4 )
{
v6 = 0;
v7 = 0;
do
{
sub_982CC(v6, key_len);
v9 = *(key1 + v8);
v10 = *(ret + v6);
key_len = v18;
v7 = (v6 + v7 + v10 + v9) & 0xFF;
*(ret + v6) = *(ret + v7);
*(ret + v7) = v10;
++v6;
result = 256;
}
while ( 256 != v6 );
}
else
{
v12 = 0;
LOBYTE(result) = 0;
do
{
v13 = *(ret + v12);
v14 = result + v13;
sub_982CC(v12, key_len);
result = v14 + *(key1 + v15);
v16 = (v14 + *(key1 + v15)) & 0xFF;
*(ret + v12) = *(ret + v16);
key_len = v18;
*(ret + v16) = v13;
++v12;
}
while ( 256 != v12 );
}
return result;
}
hook sub_88EEA
key 是 mtgsig[‘a1’] + mtgsig[‘a3’] + mtgsig[‘a4’]

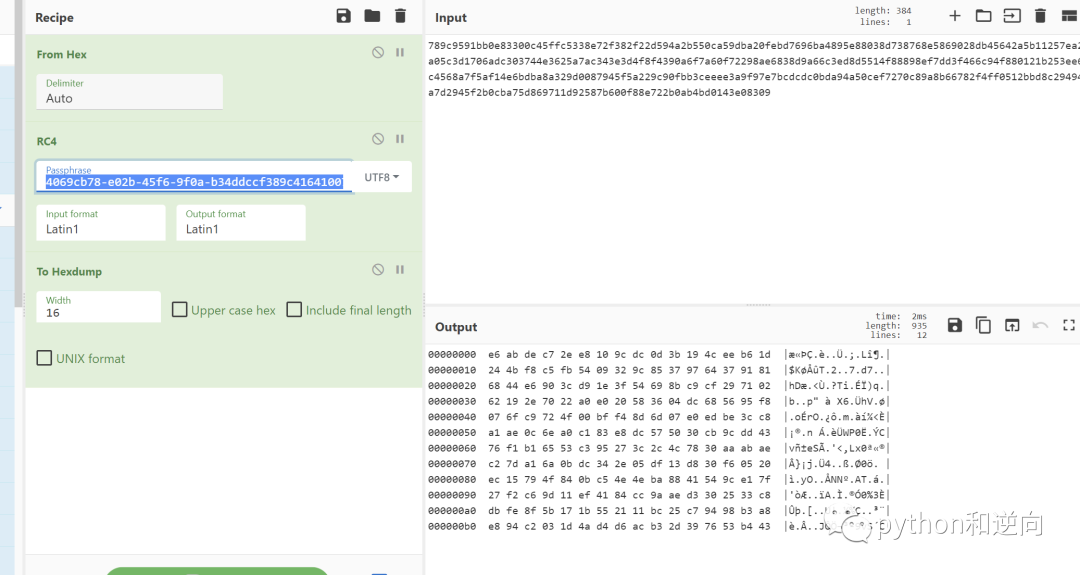

打开逆向之友，看看是否魔改了
oh shit 标准加密出来结果不对，经过验证，确实是魔改了
魔改的是密钥生成 S 的部分，huok 这个函数的返回值就是 S 盒，可以发现和标准算法生成的 S 盒不一样
两个分支，因为我之前搞过 1.5 和 2.0 的， 我发现之前版本是只有下面的分支，下面的是标准 rc4
现在因为 a4=1 所以走的上面的分支
然后经过我野兽般的眼神和嗅觉，呵，不就这里多 + 了个变量吗
好了 知道了
先搞一份 rc4 py 源码，rc4 原理这个作者也讲的很好
https://www.biaodianfu.com/rc4.html
import base64
import zlib
MOD = 256
def KSA(key):
key_length = len(key)
S = list(range(MOD))
j=0
for i in range(MOD):
j = (j + S[i] + key[i % key_length]) % MOD
S[i], S[j] = S[j], S[i]
return S
def PRGA(S):
i = 0
j = 0
while True:
i = (i + 1) % MOD
j = (j + S[i]) % MOD
S[i], S[j] = S[j], S[i] # swap values
K = S[(S[i] + S[j]) % MOD]
yield K
def get_keystream(key):
S = KSA(key)
return PRGA(S)
def encrypt_logic(key, text)->bytes:
if isinstance(key, bytes):
key = [c for c in key]
else:
key = [ord(c) for c in key]
keystream = get_keystream(key)
res = []
for c in text:
val = c ^ next(keystream)
res.append(val)
return bytes(res)
def encrypt(key, plaintext)->bytes:
if isinstance(plaintext,bytes):
plaintext = [c for c in plaintext]
else:
plaintext = [ord(c) for c in plaintext]
return encrypt_logic(key, plaintext)
def decrypt(key, ciphertext)->bytes:
ciphertext = base64.b64decode(ciphertext.encode())
res = encrypt_logic(key, ciphertext)
return res
改秘钥 key 生成 S 盒的部分
def KSA(key):
key_length = len(key)
S = list(range(MOD))
j=0
for i in range(MOD):
#多加了个 i 看到没？？？
j = (i(我是混进来的) + j + S[i] + key[i % key_length]) % MOD
S[i], S[j] = S[j], S[i]
return S
完整 py 代码
# -*- coding: utf-8 -*-
import base64
import zlib
MOD = 256
def KSA(key):
key_length = len(key)
# create the array "S"
S = list(range(MOD)) # [0,1,2, ... , 255]
j=0
for i in range(MOD):
# print(hex(key[i % key_length]))
j = (i + j + S[i] + key[i % key_length]) % MOD
S[i], S[j] = S[j], S[i] # swap values
return S
def PRGA(S):
i = 0
j = 0
while True:
i = (i + 1) % MOD
j = (j + S[i]) % MOD
S[i], S[j] = S[j], S[i] # swap values
K = S[(S[i] + S[j]) % MOD]
yield K
def get_keystream(key):
S = KSA(key)
return PRGA(S)
def encrypt_logic(key, text)->bytes:
if isinstance(key, bytes):
key = [c for c in key]
else:
key = [ord(c) for c in key]
keystream = get_keystream(key)
res = []
for c in text:
val = c ^ next(keystream)
res.append(val)
return bytes(res)
def encrypt(key, plaintext)->bytes:
if isinstance(plaintext,bytes):
plaintext = [c for c in plaintext]
else:
plaintext = [ord(c) for c in plaintext]
return encrypt_logic(key, plaintext)
def decrypt(key, ciphertext)->bytes:
ciphertext = base64.b64decode(ciphertext.encode())
res = encrypt_logic(key, ciphertext)
return res
def a5_decrypt(mtgsig):
xina5key = f"{mtgsig['a1']}{mtgsig['a3']}{mtgsig['a4']}"
a5_str = decrypt(xina5key, mtgsig['a5'])
a5_str = zlib.decompress(a5_str).decode()
print(a5_str)
return a5_str
def a5_encrypt(mtgsig):
xina5key = f"{mtgsig['a1']}{mtgsig['a3']}{mtgsig['a4']}"
a5_str =r'{"b1":"{\"1\":\"-\",\"2\":\"-\",\"3\":\"-\",\"4\":\"\",\"5\":\"1\",\"6\":\"-\",\"7\":\"-\",\"8\":\"4\",\"9\":\"\",\"10\":\"-\",\"11\":\"-\",\"12\":\"\",\"13\":\"\",\"14\":\"-\",\"15\":\"\",\"16\":\"-\",\"33\":{\"0\":0,\"1\":\"-\",\"2\":\"-\",\"3\":\"-\",\"4\":\"-\",\"5\":\"-\",\"6\":\"-\",\"7\":\"-\",\"8\":\"-\",\"9\":\"-\",\"10\":\"-\",\"11\":\"-\",\"12\":\"-\",\"13\":\"-\",\"14\":\"-\",\"15\":\"-\",\"16\":\"-\"}}","b2":1,"b3":0,"b4":"com.dianping.v1","b5":"10.52.15","b6":"1100110203","b7":1641007666,"b8":1641007666,"b9":1641007666,"b10":"5.4.11","b11":"5.4.11","b12":"2"}'
a5_str = zlib.compress(a5_str.encode())
a5 = encrypt(xina5key,a5_str)
# hexdump(a5)
print(base64.b64encode(a5).decode())
return base64.b64encode(a5).decode()
def main():
a5_decrypt(mtgsig)
a5_encrypt(mtgsig)
if __name__ == '__main__':
mtgsig = {"a0":"2.1",
"a1":"4069cb78-e02b-45f6-9f0a-b34ddccf389c",
"a3":4,
"a4":1641007666,
"a5":"SWeM8hCznbxfdTxJtc0KHSzzKXqYFjfTl0UX+7wJk1DDJpB6VVJk/z/nOY4AgFnNPQA9BrwNNfDMYuaiAtIF65ZTLlIiSrFeSKTl1OZnpXzP1FvxE7IOT8lt9vqAkVjldJteCLcNt0hCVGHgpLtSixrX4nnLBa0xx6VDq8D7l+ZuDj6LwbwhfQrTywSliZrBFMNSw7QCBwufpLeZGln+I4Gg4xO4hB78x2QpnuGoGzCQ59Bvpfsb2DYwraeRb7Il",
"a6":0,
"a7":"5R12uldnp3hSXPr7QbCyuHdMCrky7li1vGm/mSt+YyAm7r5b5MqI/SlCC8BSeXZq7tAbvMxK3aXI7ZxNMosia7BaRbVILxHDVxFHrN2tRTI=",
"a8":"DAD724885614A2FEFE4680911D321F89911FC9D29FA7F306DC6AEE1F",
"a9":"90aa5e3cGg12eitjwSfAQq77re9bzPGk5gYYnXaseK0nggfQbPVktUMdgequOmVsVNUpcP1b0ceoAHDyorGl5cekKABAErse+EP0QwwIVhofmRHst0S59pj/B5h8htH+zosxunRrK0hNZJmvoh1xRBkKHq6jquk3GIKtPf7RXCXwXxN0yS3qqcdFZO2Wep4V8va5C/TkjB0YC6u4mJz/brXx3F/KYX3Z9PaGtyRGZpaRpgKBLxVUKJWA8dwT9MgNB466bfm3XrFyYnHw0sbrgDFaMM5rile4hvzHef+08TjJ3ycIOJT0kFLZOC4c3QVftWm31epg",
"a10":"{}",
"x0":1,
"a2":"52516f82cfdd639bc05dbed46add0c59"
}
main()

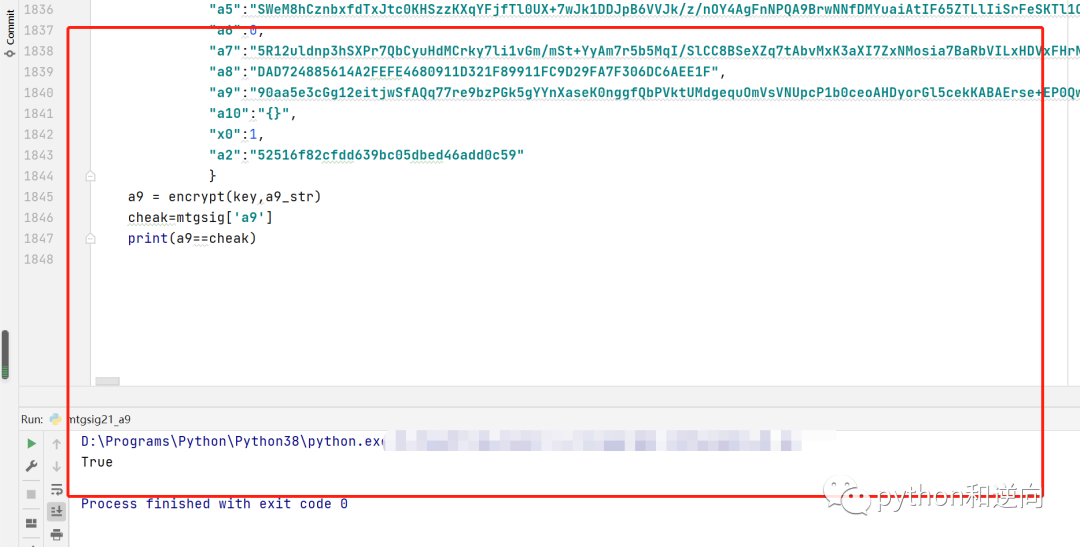

a5 完结，下篇讲讲 a9 a9 也是魔改了标准算法，应该是 Blowfish 或者 Twofishs 算法，不过因为对这算法不熟悉，愣是不知道魔改了哪里，一气之下 (走投无路
不过汇编更 6 了

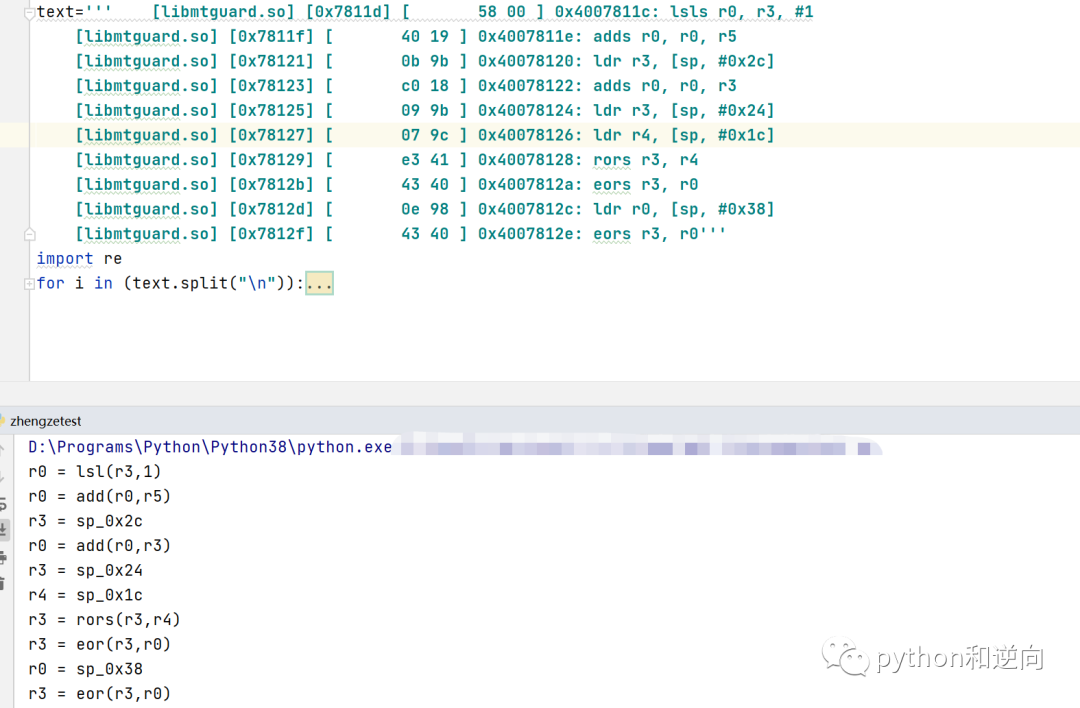

翻译到三分之一我就觉得这样好傻逼 一部分简单指令可以自动化转成 py 代码，然后就加快了速度~
哦还有 a2，a2 还是跟 mtgsig2.0 的一样
